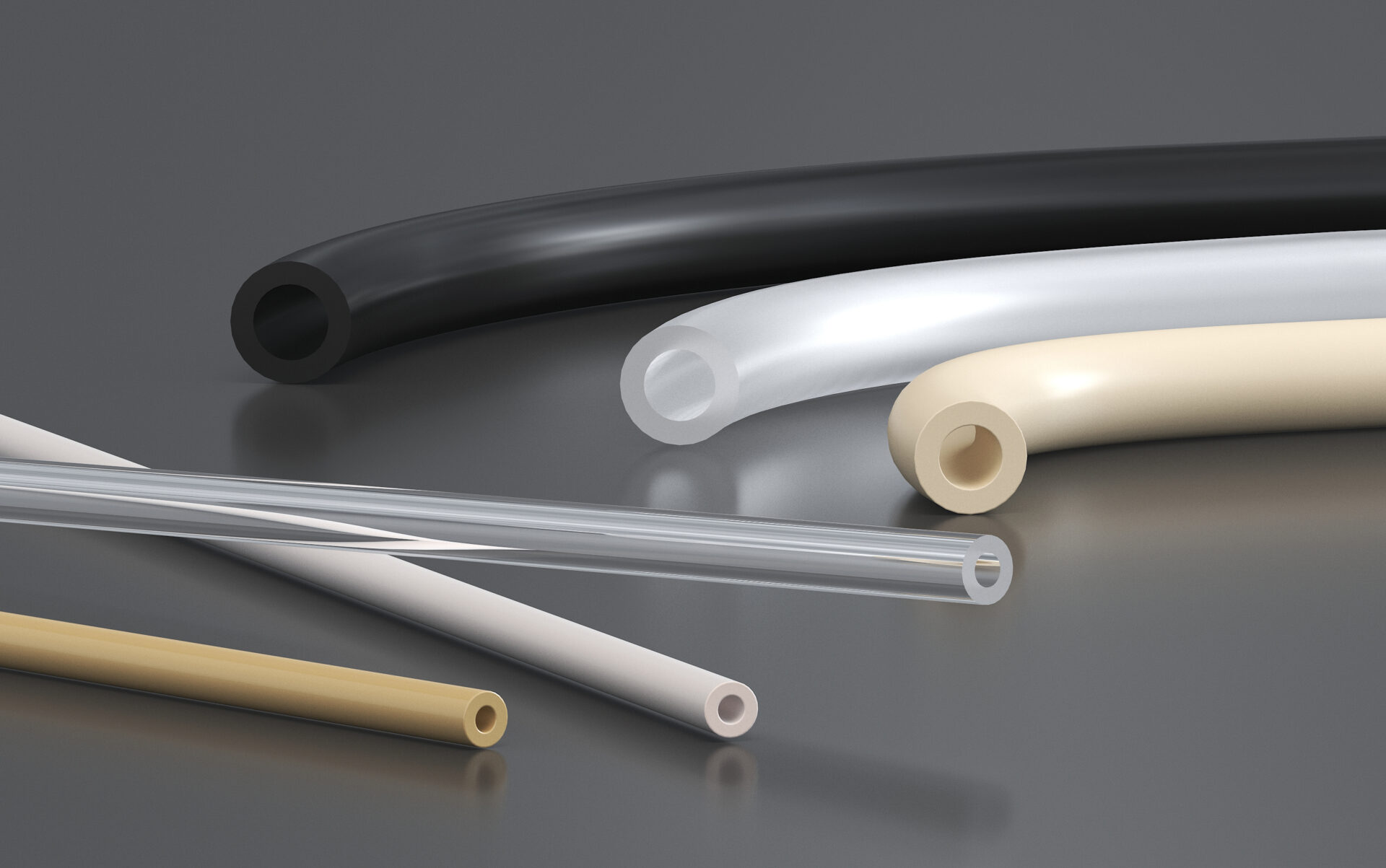

Tubing Options
- Our premium tubing, available in various materials and configurations, is designed to seamlessly integrate with your system.
- For applications requiring biocompatibility, we offer high-pressure PEEK tubing.
- Our fluoropolymer options include FEP and PTFE.
- To facilitate visual inspection of fluid flow, certain tubing styles are translucent.
- The manufacturing process ensures consistent product quality through precise tolerances.
We offer a full suite of tubing, connectors, and fittings to support the needs of high-performance analytical systems.
- Biocompatible, PEEK Tubing
- Maximum operating temperature 100°C
- Suitable for demanding applications involving high pressures.
- Demonstrates exceptional resistance to a wide range of chemicals.
- Engineered to be chemically inert for compatibility with most solvents.
- Features a smooth internal surface, enhancing resolution.
| Part # | Model No. | WT (mm） | ID (mm） | OD (mm） | Color | ||
| PEEK Capillary Tube | |||||||
| ACITF5050007 | 0.1*1.6 | 0.75 | 0.1 | 1.6 | PEEK natural | ||
| ACITF5050006 | 0.13*1.6 | 0.735 | 0.13 | 1.6 | PEEK natural | ||
| ACITF5050013 | 0.18*1.6 | 0.71 | 0.18 | 1.6 | PEEK natural | ||
| ACITF5050005 | 0.25*1.6 | 0.675 | 0.25 | 1.6 | PEEK natural | ||
| ACITF5050004 | 0.38*1.6 | 0.61 | 0.38 | 1.6 | PEEK natural | ||
| ACITF5050003 | 0.5*1.6 | 0.55 | 0.5 | 1.6 | PEEK natural | ||
| ACITF5050002 | 0.75*1.6 | 0.425 | 0.75 | 1.6 | PEEK natural | ||
| ACITF5050001 | 1*1.6 | 0.3 | 1 | 1.6 | PEEK natural | ||
- FEP Tubing
- Biocompatible
- Continuous operating temperature 50°C
- Excellent chemical resistance.
- Ideal for thermoforming
- FDA & USP Class VI compliant
- Features a smooth internal surface.
| Part # | Model No. | WT (mm） | ID (mm） | OD (mm） | Color | ||
| FEPTube | |||||||
| ACITF5040028 | BS-TFLG-Ø1*Ø1.6 | 0.3 | 1 | 1.6 | Transparent | ||
| ACITF5040001 | TFLG00001 (0.8*1.6) | 0.4 | 0.8 | 1.6 | Transparent | ||
| ACITF5040025 | TFLG0025 (0.5*Ø1.6) | 0.55 | 0.5 | 1.6 | Transparent | ||
| ACITF5040002 | TFLG00002 (1*2) | 0.5 | 1 | 2 | Transparent | ||
| ACITF5040003 | TFLG00003 (1.5*2.5) | 0.5 | 1.5 | 2.5 | Transparent | ||
| ACITF5040004 | TFLG00004 (2*3) | 0.5 | 2 | 3 | Transparent | ||
| ACITF5040011 | TFLG00009 (1.2*3) | 0.9 | 1.2 | 3 | Transparent | ||
| ACITF5040005 | TFLG00005 (2.175*3.175) | 0.5 | 2.175 | 3.175 | Transparent | ||
| ACITF5040006 | TFLG00006 (1.6*3.175) | 0.7875 | 1.6 | 3.175 | Transparent | ||
| ACITF5040007 | TFLG00007 (1.6*3.2) | 0.8 | 1.6 | 3.2 | Transparent | ||
| ACITF5040024 | TFLG-Ø3*Ø4 | 0.5 | 3 | 4 | Transparent | ||
| ACITF5040008 | TFLG00008 (2.65*4) | 0.675 | 2.65 | 4 | Transparent | ||
| ACITF5040014 | BS-TFLG-Ø2*Ø4 | 1 | 2 | 4 | Transparent | ||
| ACITF66050003 | TFLG-Ø3.2*Ø4.8 | 0.8 | 3.2 | 4.8 | Transparent | ||
| ACITF66050002 | TFLG-Ø4*Ø6 | 1 | 4 | 6 | Transparent | ||
| ACITF5040027 | BS-TFLG-Ø4.35*Ø6.35 | 1 | 4.35 | 6.35 | Transparent | ||
| ACITF66050001 | TFLG-Ø6*Ø8 | 1 | 6 | 8 | Transparent | ||
| ACITF66050005 | TFLG-Ø8*Ø10 | 1 | 8 | 10 | Transparent | ||
- PTFE Tubing
- Biocompatible
- Continuous operating temperature 50°C
- Excellent chemical resistance.
- Reduced gas diffusion
- FDA & USP Class VI compliant
- Features a smooth internal surface.
| Part # | Model No. | WT (mm） | ID (mm） | OD (mm） | Color | ||
| PTFE Tube | |||||||
| ACITF66050007 | TFLG-E-Ø1.0*Ø1.6 | 0.3 | 1 | 1.6 | White | ||
| ACITF5040013 | TFLG00001-E (0.8*1.6） | 0.4 | 0.8 | 1.6 | White | ||
| ACITF5040021 | BS-TFLG-E-Ø0.5*Ø1.6 | 0.55 | 0.5 | 1.6 | White | ||
| ACITF5040009 | BS-TFLG-E-Ø1*Φ2 | 0.5 | 1 | 2 | White | ||
| ACITF5040018 | TFLG00003-E (1.5*2.5） | 0.5 | 1.5 | 2.5 | White | ||
| ACITF5040019 | TFLG00004-E (2*3） | 0.5 | 2 | 3 | White | ||
| ACITF5040017 | TFLG00005-E (2.175*3.175） | 0.5 | 2.175 | 3.175 | White | ||
| ACITF5040012 | TFLG00007-E (1.6*3.2） | 0.8 | 1.6 | 3.2 | White | ||
| ACITF5040010 | BS-TFLG-E-Ø3*Ø4 | 0.5 | 3 | 4 | White | ||
| ACITF5040029 | BS-TFLG-E-Ø2*Ø4 | 1 | 2 | 4 | White | ||
| ACITF66050004 | TFLG-E-Ø3.2*Ø4.8 | 0.8 | 3.2 | 4.8 | White | ||
| ACITF5040026 | BS-TFLG-E-Ø4*Ø6 | 1 | 4 | 6 | White | ||
| ACITF5040020 | BS-TFLG-E-Ø4.35*Ø6.35 | 1 | 4.35 | 6.35 | White | ||
| ACITF5040030 | BS-TFLG-E-Ø5*Ø8 | 1.5 | 5 | 8 | White | ||
| ACITF66050006 | TFLG-E-Ø8*Ø10 | 1 | 8 | 10 | White | ||
- Silicone Tubing
- Translucent medical/food grade
- Autoclavable
- Continuous operating temperature 50°C to +200°C
- Meets FDA standard, high sterility
| Part # | Model No. | WT (mm） | ID (mm） | OD (mm） | Color | ||
| SiliconeTube | |||||||
| ACITF5030022 | 96405 (0.5*2.1) | 0.8 | 0.5 | 2.1 | Transparent | ||
| ACITF5030018 | 96408 (0.4*2.4) | 1 | 0.4 | 2.4 | Transparent | ||
| ACITF5030004 | 96421 (1.5*3) | 0.75 | 1.5 | 3 | Transparent | ||
| ACITF5030001 | 96410 (1*3) | 1 | 1 | 3 | Transparent | ||
| ACITF5030023 | 96406 (2.4*4) | 0.8 | 2.4 | 4 | Transparent | ||
| ACITF5030002 | 96411 (2*4) | 1 | 2 | 4 | Transparent | ||
| ACITF5030016 | 96402-13 (13#) | 1.6 | 0.8 | 4 | Transparent | ||
| ACITF66040024 | 2.4*4.8 | 1.2 | 2.4 | 4.8 | Transparent | ||
| ACITF5030005 | 96402-14 (14#) | 1.6 | 1.6 | 4.8 | Transparent | ||
| ACITF5030003 | 96413 (3*5) | 1 | 3 | 5 | Transparent | ||
| ACITF5030009 | 96402-19 (19#) | 1.6 | 2.4 | 5.6 | Transparent | ||
| ACITF5030006 | 96402-16 (16#) | 1.6 | 3.2 | 6.4 | Transparent | ||
| ACITF5030017 | 96521 (1.6*6.4) | 2.4 | 1.6 | 6.4 | Transparent | ||
| ACITF5030024 | 96418 (4.8*6.8) | 1 | 4.8 | 6.8 | Transparent | ||
| ACITF5030012 | 96402-25 (25#) | 1.6 | 4.8 | 8 | Transparent | ||
| ACITF5030007 | 96402-17 (17#) | 1.6 | 6.4 | 9.6 | Transparent | ||
| ACITF5030011 | 96402-15 (15#) | 2.5 | 4.8 | 9.8 | Transparent | ||
| ACITF5030008 | 96402-18 (18#) | 1.6 | 7.9 | 11.1 | Transparent | ||
| ACITF5030010 | 96402-24 (24#) | 2.5 | 6.4 | 11.4 | Transparent | ||
| ACITF5030013 | 96402-35 (35#) | 2.5 | 7.9 | 12.9 | Transparent | ||
| ACITF66040018 | 6.4*13 | 3.3 | 6.4 | 13 | Transparent | ||
| ACITF5030014 | 96402-36 (36#) | 2.5 | 9.6 | 14.6 | Transparent | ||
| ACITF5030015 | 96402-73 (73#) | 3.5 | 9.6 | 16.6 | Transparent | ||
| ACITF5030057 | BS-GJG-Ø10*Ø18 | 4 | 10 | 18 | Transparent | ||
| ACITF5030019 | 96402-82 (82#) | 3.5 | 12.7 | 19.7 | Transparent | ||
| ACITF66040019 | 9.5*22.1 (86#) | 6.3 | 9.5 | 22.1 | Transparent | ||
| ACITF66040021 | 12.7*22.3 (88#) | 4.8 | 12.7 | 22.3 | Transparent | ||
| ACITF66040020 | 16*22.4 | 3.2 | 16 | 22.4 | Transparent | ||
| ACITF66040022 | 19*31.6 (90#) | 6.3 | 19 | 31.6 | Transparent | ||
| ACITF66040023 | 25.4*35 (92#) | 4.8 | 25.4 | 35 | Transparent | ||
