Critical Precision

Component processing, assembly, and final verification of critical dimensions provide superior value to our customers.

Due to our technical experience, Analytical Components is able to work with you to design high-precision ultra hard material parts based on the properties of the chosen materials.

Pistons and Rods

Lapping Capabilities

  • Diameters tolerances to ± 0.254 µm (0.00001µin)
  • Surface finishes to Ra 0.00635µm (Ra 0.25 µin)
  • Custom piston diameters from 0.38mm (0.015in) to larger than 50.8mm (2.00in)

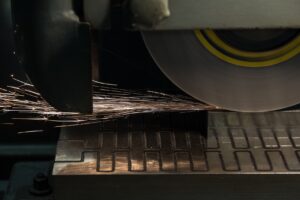

grinding-machine

Grinding Capabilities

  • Length tolerances to ±0.051mm (0.002in)
  • Blended features and transitions
  • Frosted features
angles

Features

  • Angled tips
  • Chamfers
  • Brushed radii
  • Relief features (grooves)
  • Steps
