PEEK Flanged Fittings to meet your fluidic needs

We offer a wide selection of fittings and connections

Contact us

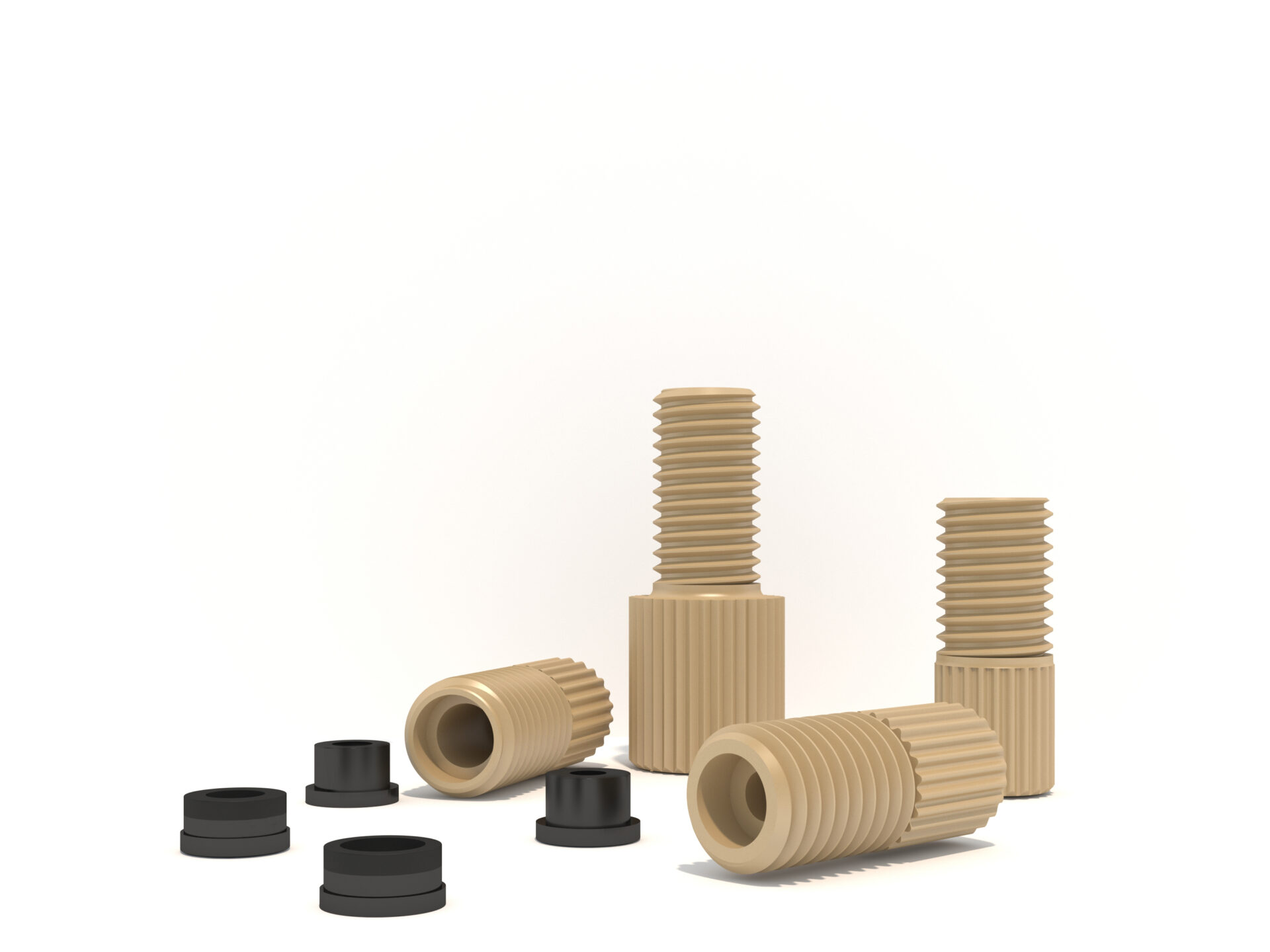

PEEK Flanged Fittings

• A traditional flat-bottomed fitting.
• Our tube flanging at the bottom of the tube allows for an airtight and robust tube connection.
• No change in tube diameter with no effect to flow rate.
• Resealable after multiple uses.
• Working temperature range -50°C to +150°C.
• Used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm.
• Thread: 1/4-28UNF, M6.

HPLC fittings that offer excellent chemical and mechanical properties

Part #	Model No.	Thread	Tube OD	Torque	Pull-off Force	Burst Pressure	Nominal Pressure Rating	Material
WF01B/WD01B
ACITF11140001	WF01B-28K * KCF-016S	1/4-28UNF	1.6mm OD	0.3N·M	2.00 kgf	9.63 Mpa	6.74 Mpa	PEEK * PPS black
ACITF11140002	WF01B-28K * KCF-020S	1/4-28UNF	2.0mm OD	0.2N·M	2.79 kgf	10.5 Mpa	7.35 Mpa	PEEK * PPS black
ACITF11140005	WD01B-28K * KCF-025S	1/4-28UNF	2.5mm OD	0.2N·M	3.48 kgf	6.27 Mpa	4.39 Mpa	PEEK * PPS black
ACITF11140006	WD01B-28K * KCF-030/032S	1/4-28UNF	3.0mm/3.2mm OD	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS black
ACITF11140019	WF01B-M6K * KCF-016S	M6	1.6mm OD	0.3N·M	1.38 kgf	10.31 Mpa	7.21 Mpa	PEEK * PPS black
ACITF11140020	WF01B-M6K * KCF-020S	M6	2.0mm OD	0.3N·M	2.69 kgf	12.07 Mpa	8.45 Mpa	PEEK * PPS black
WF06B/WD06B
ACITF11140003	WF06B-28K * KCF-016S	1/4-28UNF	1.6mm OD	0.2N·M	2.63 kgf	9.63 Mpa	6.74 Mpa	PEEK * PPS black
ACITF11140004	WF06B-28K * KCF-020S	1/4-28UNF	2.0mm OD	0.2N·M	2.68 kgf	6.76 Mpa	4.74 Mpa	PEEK * PPS black
ACITF11140007	WD06B-28K * KCF-025S	1/4-28UNF	2.5mm OD	0.2N·M	2.44 kgf	6.80 Mpa	4.76 Mpa	PEEK * PPS black
ACITF11140008	WD06B-28K * KCF-030/032S	1/4-28UNF	3.0mm/3.2mm OD	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS black
ACITF11140021	WF06B-M6K * KCF-016S	M6	1.6mm OD	0.2N·M	2.20 kgf	10.53 Mpa	7.37 Mpa	PEEK * PPS black
ACITF11140022	WF06B-M6K * KCF-020S	M6	2.0mm OD	0.2N·M	2.54 kgf	7.72 Mpa	5.40 Mpa	PEEK * PPS black

Part #	Model No.	Thread	Tube OD					Material
10-32UNF PEEK Flanged Fitting
ACITF11010133	WF35E-32K * KDF-020S	10-32UNF	2.0mm OD					PEEK*SUS316

Part #	Model No. / FEP tube length (m)	Thread	Model (ID*OD)	Torque	Pull-off Force	Burst Pressure	Nominal Pressure Rating	Material
With Flanged Tube
ACITF11150001	WD06B-28K+KCF-030/032S+TFLG05/0.2	1/4-28UNF	2.175*3.175mm	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS * FEP
ACITF11150002	WD06B-28K+KCF-030/032S+TFLG05/0.3	1/4-28UNF	2.175*3.175mm	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS * FEP
ACITF11150003	WD06B-28K+KCF-030/032S+TFLG05/0.5	1/4-28UNF	2.175*3.175mm	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS * FEP
ACITF11150004	WD06B-28K+KCF-030/032S+TFLG05/1	1/4-28UNF	2.175*3.175mm	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS * FEP
ACITF11150005	WD06B-28K+KCF-030/032S+TFLG05/2	1/4-28UNF	2.175*3.175mm	0.2N·M	5.60 kgf	6.10 Mpa	4.27 Mpa	PEEK * PPS * FEP
ACITF11150006	WD01B-28K+KCF-030/032S+TFLG06/0.2	1/4-28UNF	1.6*3.175mm	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS * FEP
ACITF11150007	WD01B-28K+KCF-030/032S+TFLG06/0.3	1/4-28UNF	1.6*3.175mm	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS * FEP
ACITF11150008	WD01B-28K+KCF-030/032S+TFLG06/0.5	1/4-28UNF	1.6*3.175mm	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS * FEP
ACITF11150009	WD01B-28K+KCF-030/032S+TFLG06/1	1/4-28UNF	1.6*3.175mm	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS * FEP
ACITF11150010	WD01B-28K+KCF-030/032S+TFLG06/2	1/4-28UNF	1.6*3.175mm	0.3N·M	6.11 kgf	4.95 Mpa	3.46 Mpa	PEEK * PPS * FEP

Part #	Model No.	Thread	Tube OD	Torque	Pull-off Force	Burst Pressure	Nominal Pressure Rating	Material
ACITF11050001	KCF-016-S		OD 1.6mm					PPS
ACITF11050002	KCF-020-S		OD 2.0mm					PPS
ACITF11050003	KCF-025-S		OD 2.5mm					PPS
ACITF11050004	KCF-030/032-S		OD 3.0/3.2mm					PPS

Contact for a custom quote
