PEEK Adapters to meet your fluidic needs

We offer a wide selection of fittings and connections

Contact us

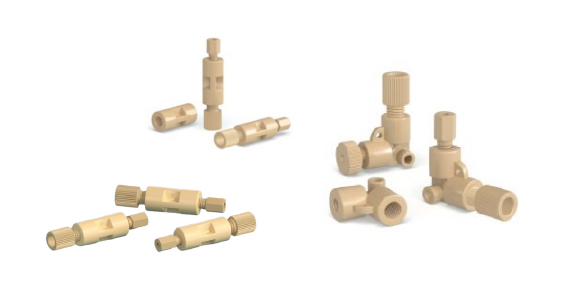

PEEK Female Adapters

• Ideal for connecting fittings with the same or different threads together.
• Operating temperature: -100°C~+250°C

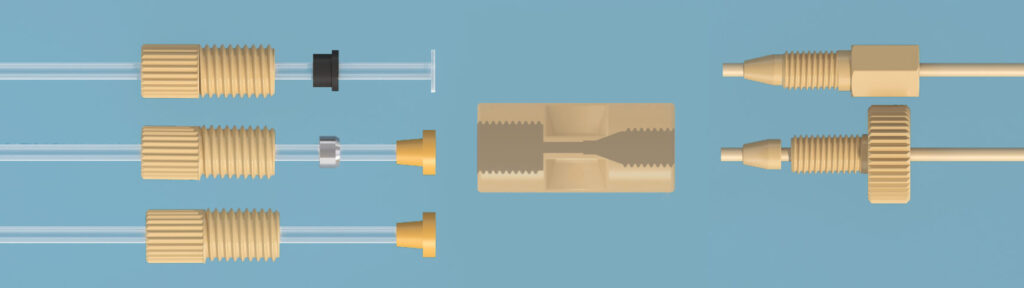

•  Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom
  threaded fittings.

Adapters that offer excellent chemical and mechanical properties

Part #	Model No.	Thread	Flow Passage Diameter	Wetted Passage Volume	Pull-off Force	Burst pressure	Pressure Rating	Material

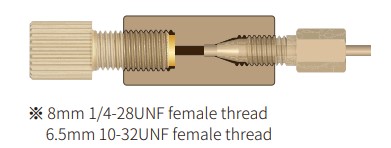

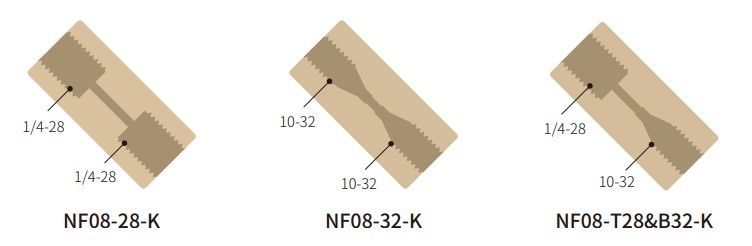

NF08-28-K
ACITF11110001	NF08-28-K(0.8)	1/4-28UNF	0.8 mm	4.02 mm3	1.75 kgf	5.46 Mpa	3.80 Mpa	PEEK natural
ACITF11110002	NF08-28-K(1.25)	1/4-28UNF	1.25 mm	9.82 mm3	1.79 kgf	5.41 Mpa	3.62 Mpa	PEEK natural
ACITF11110003	NF08-28-K(2.0)	1/4-28UNF	2.0 mm	25.13 mm3	1.97 kgf	5.46 Mpa	3.49 Mpa	PEEK natural
NF08-32-K
ACITF11110004	NF08-32-K(0.8)	10-32UNF	0.8 mm	0.94 mm3	5.49 kgf	12.11 Mpa	8.50 Mpa	PEEK natural
ACITF11110005	NF08-32-K(1.25)	10-32UNF	1.25 mm	2.30 mm3	5.29 kgf	11.47 Mpa	8.00 Mpa	PEEK natural
NF08-T28&32-K
ACITF11100001	NF08-T28&B32-K(0.8)	1/4-28UNF & 10-32UNF	0.8 mm	2.50 mm3	1.86 kgf	5.67 Mpa	3.66 Mpa	PEEK natural
ACITF11100002	NF08-T28&B32-K(1.25)	1/4-28UNF & 10-32UNF	1.25 mm	6.10 mm3	1.79 kgf	5.54 Mpa	3.90 Mpa	PEEK natural

Part #	Model No.	Thread	Flow Passage Diameter	Wetted Passage Volume	Material

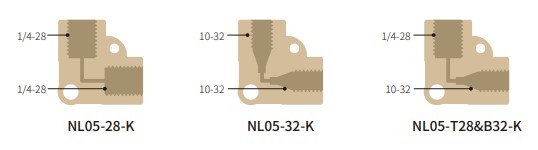

NL05-28-K
ACITF11060001	NL05-28-K(0.8)	1/4-28UNF	0.8 mm	4.76 mm3	PEEK natural
ACITF11060002	NL05-28-K(1.25)	1/4-28UNF	1.25 mm	11.77 mm3	PEEK natural
ACITF11060003	NL05-28-K(2.0)	1/4-28UNF	2.0 mm	29.56 mm3	PEEK natural
NL05-32-K
ACITF11060004	NL05-32-K(0.8)	10-32UNF	0.8 mm	1.68 mm3	PEEK natural
ACITF11060005	NL05-32-K(1.25)	10-32UNF	1.25 mm	4.14 mm3	PEEK natural
NL05-T28&32-K
ACITF11060006	NL05-T28&B32-K(0.8)	1/4-28UNF & 10-32UNF	0.8 mm	3.22 mm3	PEEK natural
ACITF11060007	NL05-T28&B32-K(1.25)	1/4-28UNF & 10-32UNF	1.25 mm	7.96 mm3	PEEK natural

Part #	Model No.	Thread	Flow Passage Diameter	Wetted Passage Volume	Material

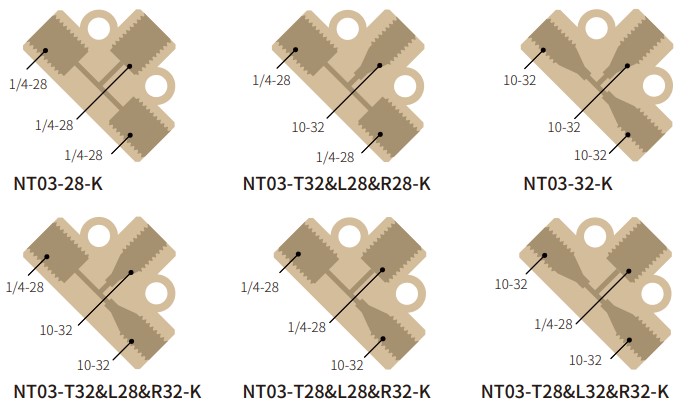

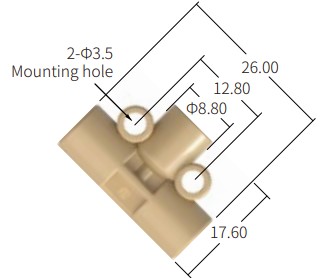

NT03-28-K
ACITF11120001	NT03-28-K(0.8)	1/4-28UNF(*3)	0.8 mm	7.47 mm3	PEEK natural
ACITF11120002	NT03-28-K(1.25)	1/4-28UNF(*3)	1.25 mm	18.29 mm3	PEEK natural
ACITF11120003	NT03-28-K(2.0)	1/4-28UNF(*3)	2.0 mm	45.09 mm3	PEEK natural
NT03-T32&L28&R28-K
ACITF11120004	NT03-T32&L28&R28-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	5.94 mm3	PEEK natural
ACITF11120005	NT03-T32&L28&R28-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	14.48 mm3	PEEK natural
NT03-32-K
ACITF11120006	NT03-32-K(0.8)	10-32UNF(*3)	0.8 mm	2.87 mm3	PEEK natural
ACITF11120007	NT03-32-K(1.25)	10-32UNF(*3)	1.25 mm	6.86 mm3	PEEK natural
NT03-T32&L28&R32-K
ACITF11120008	NT03-T32&L28&R32-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	4.4 mm3	PEEK natural
ACITF11120009	NT03-T32&L28&R32-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	10.67 mm3	PEEK natural
NT03-T28&L28&R32-K
ACITF11120010	NT03-T28&L28&R32-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	5.94 mm3	PEEK natural
ACITF11120011	NT03-T28&L28&R32-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	14.48 mm3	PEEK natural
NT03-T28&L32&R32-K
ACITF11120012	NT03-T28&L32&R32-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	4.4 mm3	PEEK natural
ACITF11120013	NT03-T28&L32&R32-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	10.68 mm3	PEEK natural

Part #	Model No.	Thread	Flow Passage Diameter	Wetted Passage Volume	Material

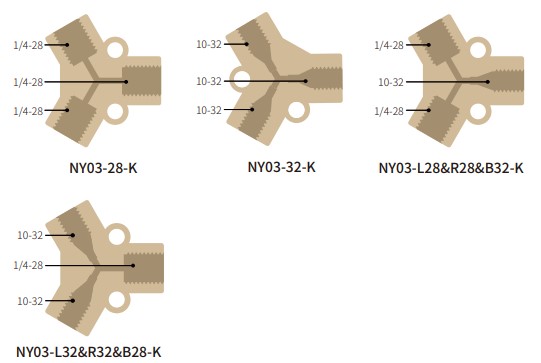

NY03-28-K
ACITF11080001	NY03-28-K(0.8)	1/4-28UNF(*3)	0.8 mm	7.39 mm3	PEEK natural
ACITF11080002	NY03-28-K(1.25)	1/4-28UNF(*3)	1.25 mm	18.13 mm3	PEEK natural
ACITF11080003	NY03-28-K(2.0)	1/4-28UNF(*3)	2.0 mm	44.81 mm3	PEEK natural
NY03-32-K
ACITF11080004	NY03-32-K(0.8)	10-32UNF(*3)	0.8 mm	2.78 mm3	PEEK natural
ACITF11080005	NY03-32-K(1.25)	10-32UNF(*3)	1.25 mm	6.68 mm3	PEEK natural
NY03-L28&R28&B32-K
ACITF11080006	NY03-L28&R28&B32-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	5.85 mm3	PEEK natural
ACITF11080007	NY03-L28&R28&B32-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	14.31 mm3	PEEK natural
NY03-L32&R32&B28-K
ACITF11080008	NY03-L32&R32&B28-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	4.32 mm3	PEEK natural
ACITF11080009	NY03-L32&R32&B28-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	10.5 mm3	PEEK natural

Part #	Model No.	Thread	Flow Passage Diameter	Wetted Passage Volume	Material

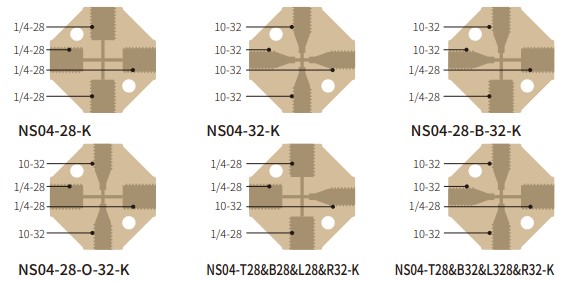

NS04-28-K
ACITF11090001	NS04-28-K(0.8)	1/4-28UNF(*4)	0.8 mm	9.21 mm3	PEEK natural
ACITF11090002	NS04-28-K(1.25)	1/4-28UNF(*4)	1.25 mm	22.36 mm3	PEEK natural
ACITF11090003	NS04-28-K(2.0)	1/4-28UNF(*4)	2.0 mm	54.36 mm3	PEEK natural
NS04-32-K
ACITF11090004	NS04-32-K(0.8)	10-32UNF(*4)	0.8 mm	3.05 mm3	PEEK natural
ACITF11090005	NS04-32-K(1.25)	10-32UNF(*4)	1.25 mm	7.07 mm3	PEEK natural
NS04-28-B-32-K
ACITF11090006	NS04-28-B-32-K(0.8)	1/4-28UNF(*2) & 10-32UNF(*2)	0.8 mm	6.13 mm3	PEEK natural
ACITF11090007	NS04-28-B-32-K(1.25)	1/4-28UNF(*2) & 10-32UNF(*2)	1.25 mm	14.73 mm3	PEEK natural
NS04-28-O-32-K
ACITF11090008	NS04-28-O-32-K(0.8)	1/4-28UNF(*2) & 10-32UNF(*2)	0.8 mm	6.13 mm3	PEEK natural
ACITF11090009	NS04-28-O-32-K(1.25)	1/4-28UNF(*2) & 10-32UNF(*2)	1.25 mm	14.49 mm3	PEEK natural
NS04-T28&B28&L28&R32-K
ACITF11090010	NS04-T28&B28&L28&R32-K(0.8)	1/4-28UNF(*3) & 10-32UNF	0.8 mm	7.67 mm3	PEEK natural
ACITF11090011	NS04-T28&B28&L28&R32-K(1.25)	1/4-28UNF(*3) & 10-32UNF	1.25 mm	18.26 mm3	PEEK natural
NS04-T28&B32&L328&R32-K
ACITF11090012	NS04-T28&B32&L328&R32-K(0.8)	1/4-28UNF & 10-32UNF(*3)	0.8 mm	4.6 mm3	PEEK natural
ACITF11090013	NS04-T28&B32&L328&R32-K(1.25)	1/4-28UNF & 10-32UNF(*3)	1.25 mm	10.75 mm3	PEEK natural

Part #	Model No.	Thread	Flow Passage Diameter	Pressure Rating	Material

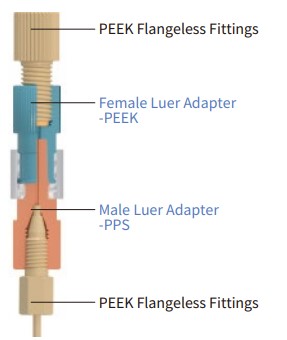

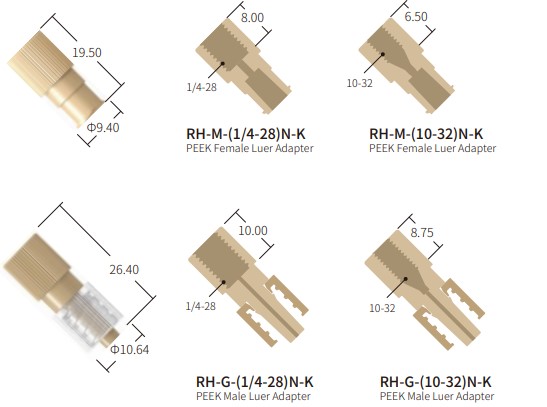

RH-M
ACITF11130001	RH-M-(1/4-28)N-K	1/4-28UNF		3.50 Mpa	PEEK natural
ACITF11130002	RH-M-(10-32)N-K	10-32UNF		3.50 Mpa	PEEK natural
RH-G
ACITF11130003	RH-G-（1/4-28）N-K(0.8)	1/4-28UNF	0.8 mm	3.50 Mpa	PEEK natural+PP natural
ACITF11130005	RH-G-（1/4-28）N-K(1.2)	1/4-28UNF	1.2mm	3.50 Mpa	PEEK natural+PP natural
ACITF11130004	RH-G-（10-32）N-K(0.8)	10-32UNF	0.8 mm	3.50 Mpa	PEEK natural+PP natural
ACITF11130006	RH-G-（10-32）N-K(1.2)	10-32UNF	1.2mm	3.50 Mpa	PEEK natural+PP natural

Part #	Model No.	Thread	Flow Passage Diameter	Pressure Rating	Material

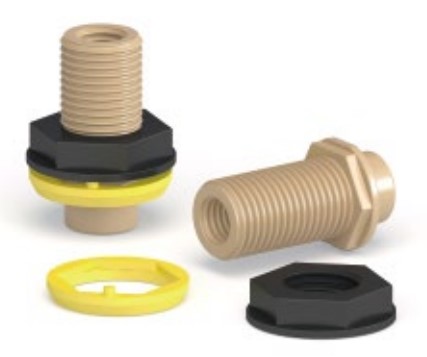

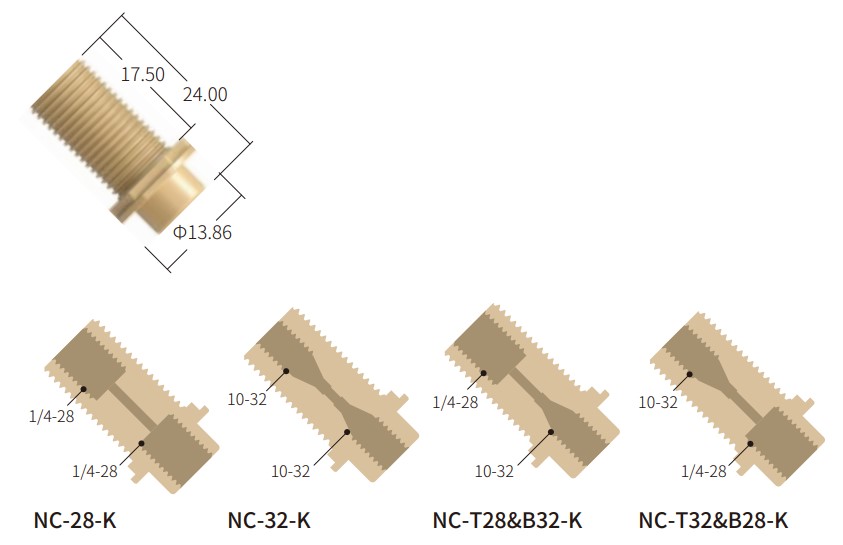

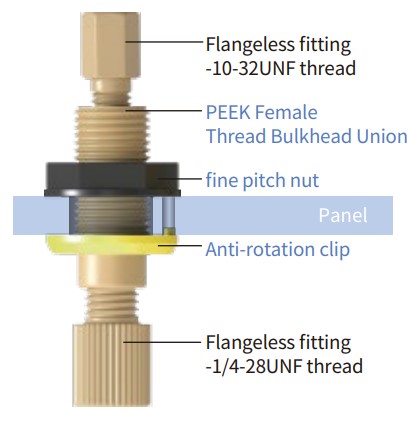

NC-28-K

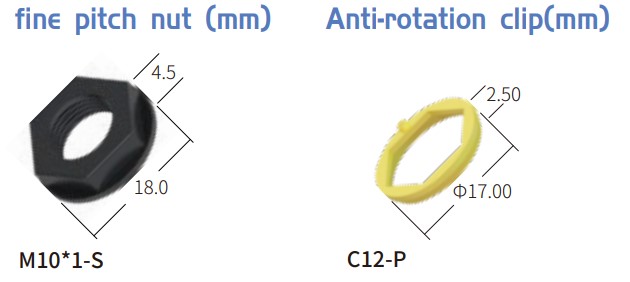

ACITF11070010	NC-28-K(0.8) * M10*1-S * C12-P red	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP red
ACITF11070011	NC-28-K(0.8) * M10*1-S * C12-P black	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP black
ACITF11070012	NC-28-K(0.8) * M10*1-S * C12-P yellow	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP yellow
ACITF11070013	NC-28-K(0.8) * M10*1-S * C12-P green	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP green
ACITF11070014	NC-28-K(0.8) * M10*1-S * C12-P light blue	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP light blue
ACITF11070015	NC-28-K(0.8) * M10*1-S * C12-P dark blue	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070016	NC-28-K(0.8) * M10*1-S * C12-P purple	1/4-28UNF flat bottom	0.8mm	4.02 mm3	PEEK natural*PPS black*PP purple
NC-28-K
ACITF11070017	NC-28-K(1.25) * M10*1-S * C12-P red	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP red
ACITF11070018	NC-28-K(1.25) * M10*1-S * C12-P black	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP black
ACITF11070019	NC-28-K(1.25) * M10*1-S * C12-P yellow	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP yellow
ACITF11070020	NC-28-K(1.25) * M10*1-S * C12-P green	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP green
ACITF11070021	NC-28-K(1.25) * M10*1-S * C12-P light blue	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP light blue
ACITF11070022	NC-28-K(1.25) * M10*1-S * C12-P dark blue	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070023	NC-28-K(1.25) * M10*1-S * C12-P purple	1/4-28UNF flat bottom	1.25mm	9.98 mm3	PEEK natural*PPS black*PP purple
ACITF11070024	NC-28-K(2.0) * M10*1-S * C12-P red	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP red
ACITF11070025	NC-28-K(2.0) * M10*1-S * C12-P black	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP black
ACITF11070026	NC-28-K(2.0) * M10*1-S * C12-P yellow	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP yellow
ACITF11070027	NC-28-K(2.0) * M10*1-S * C12-P green	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP green
ACITF11070028	NC-28-K(2.0) * M10*1-S * C12-P light blue	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP light blue
ACITF11070029	NC-28-K(2.0) * M10*1-S * C12-P dark blue	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070030	NC-28-K(2.0) * M10*1-S * C12-P purple	1/4-28UNF flat bottom	2.0mm	25.13 mm3	PEEK natural*PPS black*PP purple
NC-32-K
ACITF11070031	NC-32-K(0.8) * M10*1-S * C12-P red	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP red
ACITF11070032	NC-32-K(0.8) * M10*1-S * C12-P black	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP black
ACITF11070033	NC-32-K(0.8) * M10*1-S * C12-P yellow	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP yellow
ACITF11070034	NC-32-K(0.8) * M10*1-S * C12-P green	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP green
ACITF11070035	NC-32-K(0.8) * M10*1-S * C12-P light blue	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP light blue
ACITF11070036	NC-32-K(0.8) * M10*1-S * C12-P dark blue	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070037	NC-32-K(0.8) * M10*1-S * C12-P purple	10-32UNF conical	0.8mm	0.94 mm3	PEEK natural*PPS black*PP purple
ACITF11070038	NC-32-K(1.25) * M10*1-S * C12-P red	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP red
ACITF11070039	NC-32-K(1.25) * M10*1-S * C12-P black	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP black
ACITF11070040	NC-32-K(1.25) * M10*1-S * C12-P yellow	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP yellow
ACITF11070041	NC-32-K(1.25) * M10*1-S * C12-P green	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP green
ACITF11070042	NC-32-K(1.25) * M10*1-S * C12-P light blue	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP light blue
ACITF11070043	NC-32-K(1.25) * M10*1-S * C12-P dark blue	10-32UNF conical	1.25mm	2.33 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070044	NC-32-K(1.25) * M10*1-S * C12-P purple	10-32UNF conica	1.25mm	2.33 mm3	PEEK natural*PPS black*PP purple
NC-T28&B32-K
ACITF11070045	NC-T28&B32-K(0.8) * M10*1-S * C12-P red	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP red
ACITF11070046	NC-T28&B32-K(0.8) * M10*1-S * C12-P black	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP black
ACITF11070047	NC-T28&B32-K(0.8) * M10*1-S * C12-P yellow	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP yellow
ACITF11070048	NC-T28&B32-K(0.8) * M10*1-S * C12-P green	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP green
ACITF11070049	NC-T28&B32-K(0.8) * M10*1-S * C12-P light blue	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP light blue
ACITF11070050	NC-T28&B32-K(0.8) * M10*1-S * C12-P dark blue	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070051	NC-T28&B32-K(0.8) * M10*1-S * C12-P purple	1/4-28UNF flat bottom & 10-32UNF conical	0.8mm	2.48 mm3	PEEK natural*PPS black*PP purple
ACITF11070052	NC-T28&B32-K(1.25) * M10*1-S * C12-P red	1/4-28UNF flat bottom & 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP red
ACITF11070053	NC-T28&B32-K(1.25) * M10*1-S * C12-P black	1/4-28UNF flat bottom & 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP black
ACITF11070054	NC-T28&B32-K(1.25) * M10*1-S * C12-P yellow	1/4-28UNF flat bottom & 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP yellow
ACITF11070055	NC-T28&B32-K(1.25) * M10*1-S * C12-P green	1/4-28UNF flat bottom & 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP green
ACITF11070056	NC-T28&B32-K(1.25) * M10*1-S * C12-P light blue	1/4-28UNF flat bottom& 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP light blue
ACITF11070057	NC-T28&B32-K(1.25) * M10*1-S * C12-P dark blue	1/4-28UNF flat bottom& 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070058	NC-T28&B32-K(1.25) * M10*1-S * C12-P purple	1/4-28UNF flat bottom & 10-32UNF conical	1.25mm	6.16 mm3	PEEK natural*PPS black*PP purple
NC-T28&B32-K
ACITF11070059	NC-T32&B28-K(0.8) * M10*1-S * C12-P red	10-32UNF conical& 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP red
ACITF11070060	NC-T32&B28-K(0.8) * M10*1-S * C12-P black	10-32UNF conical& 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP black
ACITF11070061	NC-T32&B28-K(0.8) * M10*1-S * C12-P yellow	10-32UNF conical & 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP yellow
ACITF11070062	NC-T32&B28-K(0.8) * M10*1-S * C12-P green	10-32UNF conical & 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP green
ACITF11070063	NC-T32&B28-K(0.8) * M10*1-S * C12-P light blue	10-32UNF conical & 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP light blue
ACITF11070064	NC-T32&B28-K(0.8) * M10*1-S * C12-P dark blue	10-32UNF conical & 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070065	NC-T32&B28-K(0.8) * M10*1-S * C12-P purple	10-32UNF conical & 1/4-28UNF flat bottom	0.8mm	2.48 mm3	PEEK natural*PPS black*PP purple
ACITF11070066	NC-T32&B28-K(1.25) * M10*1-S * C12-P red	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP red
ACITF11070067	NC-T32&B28-K(1.25) * M10*1-S * C12-P black	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP black
ACITF11070068	NC-T32&B28-K(1.25) * M10*1-S * C12-P yellow	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP yellow
ACITF11070069	NC-T32&B28-K(1.25) * M10*1-S * C12-P green	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP green
ACITF11070070	NC-T32&B28-K(1.25) * M10*1-S * C12-P light blue	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP light blue
ACITF11070071	NC-T32&B28-K(1.25) * M10*1-S * C12-P dark blue	10-32UNF conical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP dark blue
ACITF11070072	NC-T32&B28-K(1.25) * M10*1-S * C12-P purple	10-32UNFconical & 1/4-28UNF flat bottom	1.25mm	6.16 mm3	PEEK natural*PPS black*PP purple

Contact for a custom quote
