Luer connections to simplify your liquid management needs
We offer a wide selection of Luer fittings, adapters, quick connect & disconnect fittings.

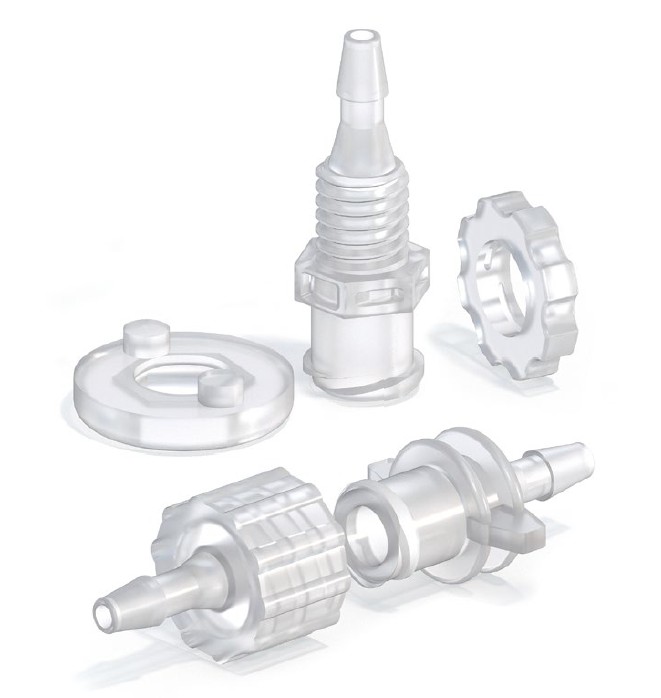

Luer Adapters
- Standard micro-permeation-free adapters that are usually
connected to male and female luer connections. - Simplifies management of liquid or gaseous medical fluids and allows multiple compatible fluids to be managed with the same tube.
- PP material, non-toxic, odorless, heat resistant, resistant to chemical corrosion and various organic substances.
| Part # | Model No. | Tubing ID | Material | |||

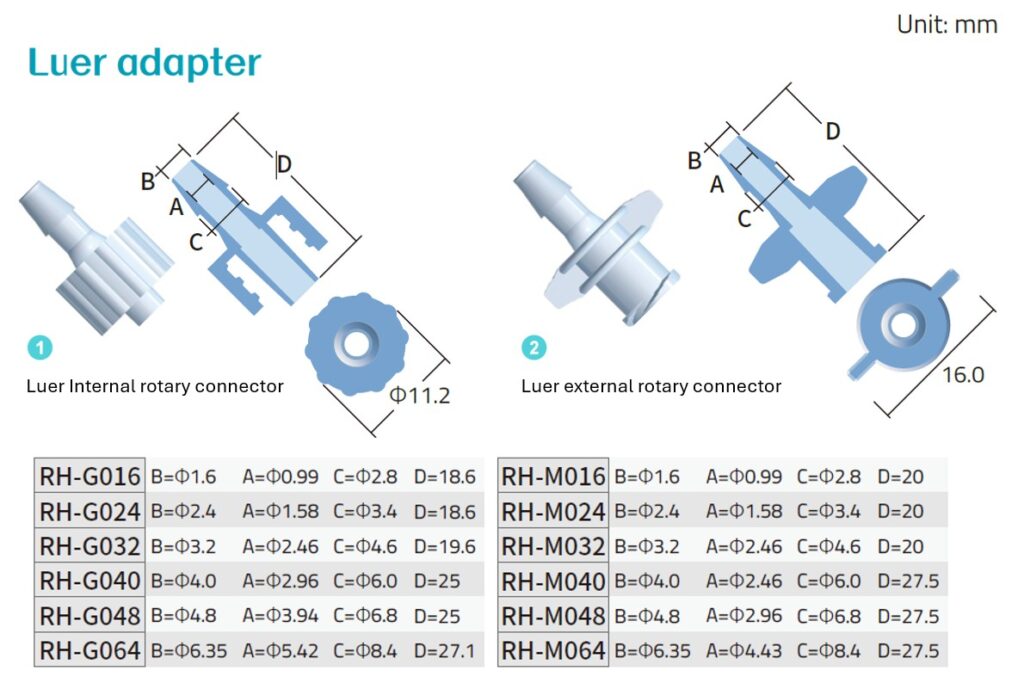

| Male luer adapter | ||||||
| ACIBL8050006 | RH-G016 | 1.0~1.6 mm | PP natural | |||
| ACIBL8050005 | RH-G024 | 1.6~2.4 mm | PP natural | |||
| ACIBL8050004 | RH-G032 | 2.4~3.2 mm | PP natural | |||
| ACIBL8050003 | RH-G040 | 3.2~4.0 mm | PP natural | |||
| ACIBL8050002 | RH-G048 | 4.0~4.8 mm | PP natural | |||
| ACIBL8050001 | RH-G064 | 4.8~6.4 mm | PP natural | |||
| ACIBL8050046 | RH-G024-yellow | 1.6~2.4 mm | PP yellow | |||
| ACIBL8050047 | RH-G024-red | 1.6~2.4 mm | PP red | |||
| ACIBL8050048 | RH-G024-green | 1.6~2.4 mm | PP green | |||
| ACIBL8050052 | RH-G024-blue | 1.6~2.4 mm | PP blue | |||
| Female luer adapter | ||||||
| ACIBL8050032 | RH-M016 | 1.0~1.6 mm | PP natural | |||
| ACIBL8050031 | RH-M024 | 1.6~2.4 mm | PP natural | |||
| ACIBL8050030 | RH-M032 | 2.4~3.2 mm | PP natural | |||
| ACIBL8050029 | RH-M040 | 3.2~4.0 mm | PP natural | |||
| ACIBL8050028 | RH-M048 | 4.0~4.8 mm | PP natural | |||
| ACIBL8050027 | RH-M064 | 4.8~6.4 mm | PP natural | |||
| Part # | Model No. | Tubing ID | Thread | Material | ||

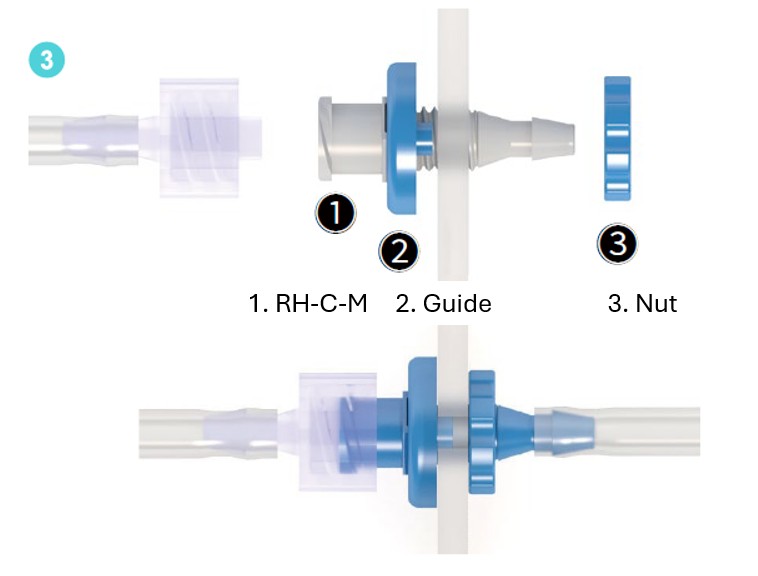

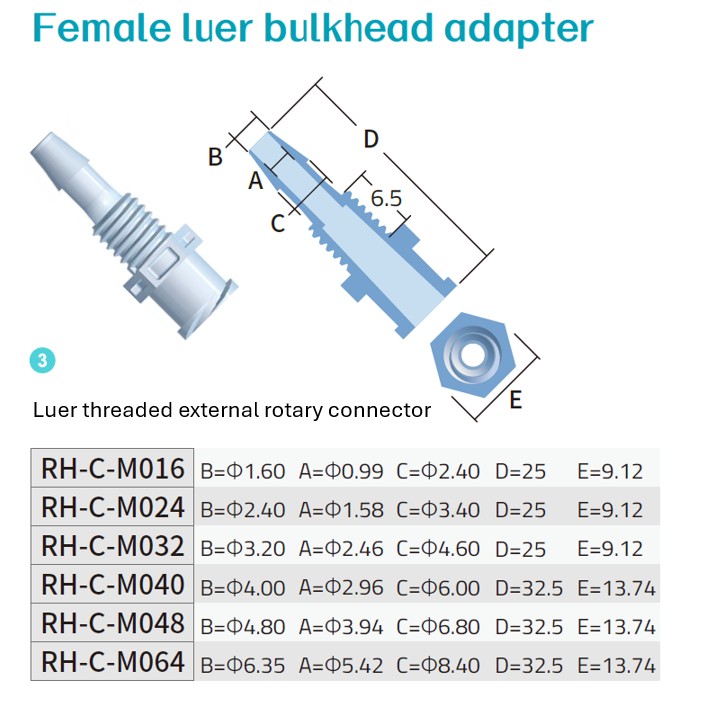

| Bulkhead luer adapter | ||||||

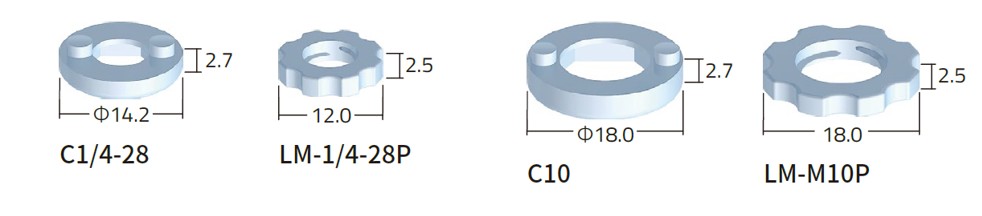

| ACIBL8050037 | RH-C-M016 * C1/4-28 * LM-1/4-28P | 1.0~1.6 mm | 1/4-28UNF | PP natural | ||
| ACIBL8050038 | RH-C-M024 * C1/4-28 * LM-1/4-28P | 1.6~2.4 mm | 1/4-28UNF | PP natural | ||
| ACIBL8050039 | RH-C-M032 * C1/4-28 * LM-1/4-28P | 2.4~3.2 mm | 1/4-28UNF | PP natural | ||
| ACIBL8050040 | RH-C-M040 * C10 * LM-M10P | 3.2~4.0 mm | M10 | PP natural | ||
| ACIBL8050041 | RH-C-M048 * C10 * LM-M10P | 4.0~4.8 mm | M10 | PP natural | ||
| ACIBL8050042 | RH-C-M064 * C10 * LM-M10P | 4.8~6.4 mm | M10 | PP natural | ||

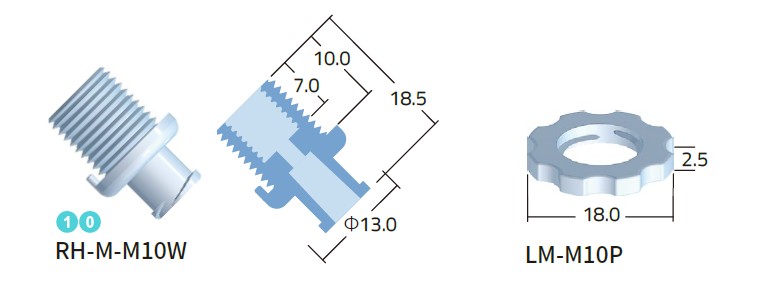

| Female luer bulkhead adapter | ||||||

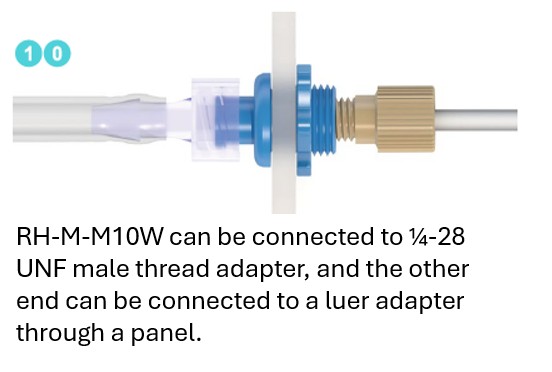

| ACIBL8050043 | RH-M-M10W * LM-M10P | 1/4 28UNF female thread/M10 male thread | PP natural | |||

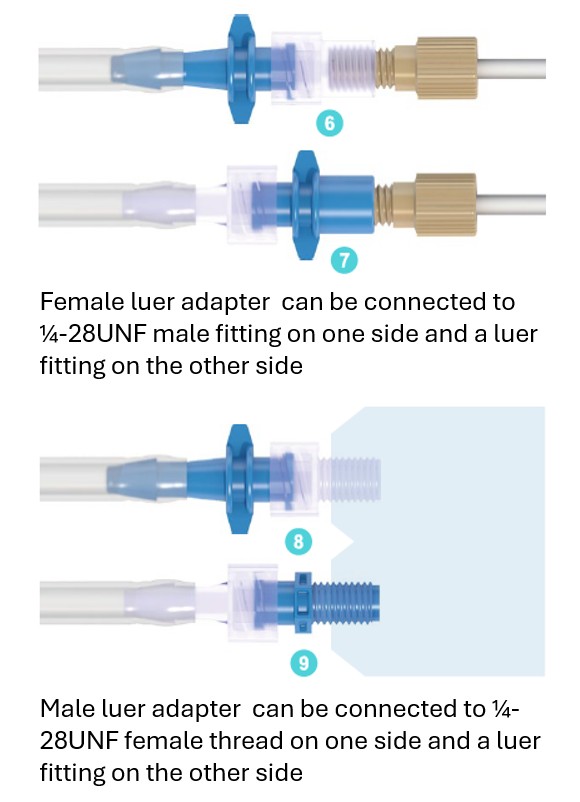

| Luer adapter | ||||||

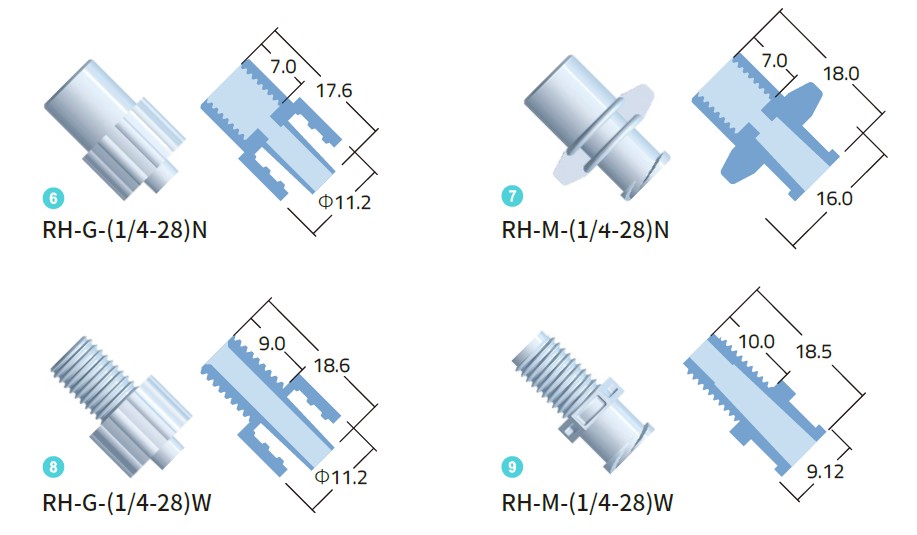

| ACIBL8050022 | RH-G-(1/4-28)N | 1/4-28UNF female thread | PP natural | |||
| ACIBL8050023 | RH-M-(1/4-28)N | 1/4-28UNF female thread | PP natural | |||
| ACIBL8050024 | RH-G-(1/4-28)W | 1/4-28UNF male thread | PP natural | |||
| ACIBL8050026 | RH-M-(1/4-28)W | 1/4-28UNF male thread | PP natural | |||

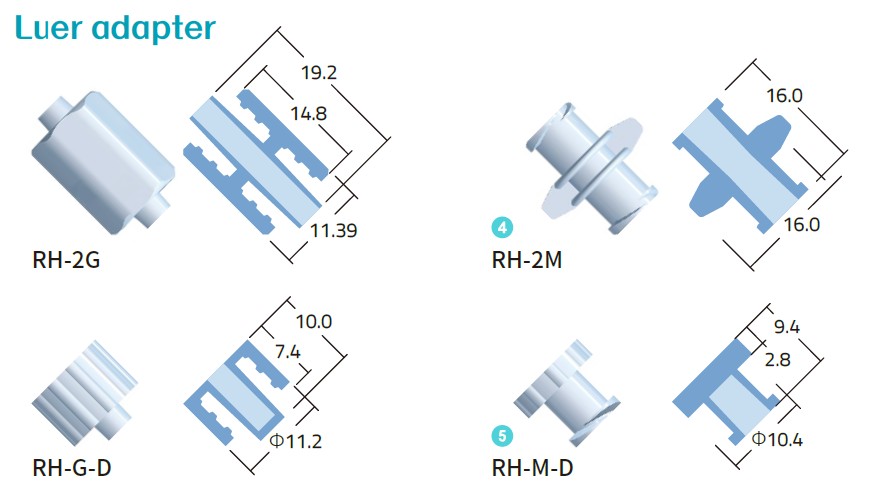

| ACIBL8050016 | RH-2G | PP natural | ||||
| ACIBL8050017 | RH-2M | PP natural | ||||
| ACIBL8050018 | RH-3M-T | PP natural | ||||
| ACIBL8050019 | RH-4M | PP natural | ||||
| ACIBL8050020 | RH-3M-Y | PP natural | ||||
| ACIBL8050021 | RH-2M-L | PP natural | ||||
| ACIBL8050022 | RH-G-(1/4-28)N | PP natural | ||||
| ACIBL8050023 | RH-M-(1/4-28)N | PP natural | ||||
| ACIBL8050024 | RH-G-(1/4-28)W | PP natural | ||||
| ACIBL8050026 | RH-M-(1/4-28)W | PP natural | ||||
| ACIBL8050035 | RH-G-D | PP natural | ||||
| ACIBL8050036 | RH-M-D | PP natural | ||||
