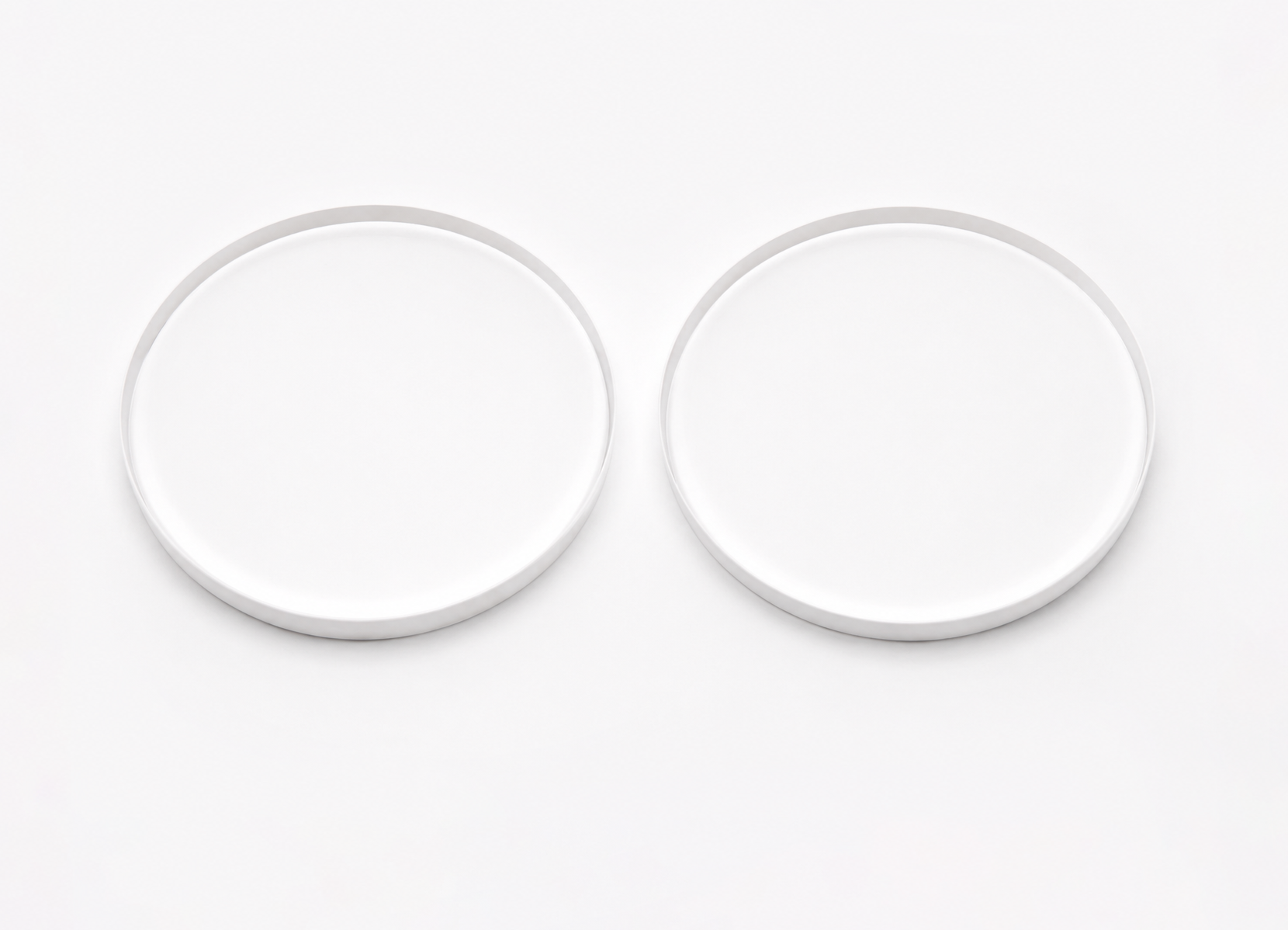

In our previous blog, Industry applications of Sapphire Windows, we looked at the industries and applications where sapphire windows can be used. This blog focuses on how to ensure the right sapphire window is chosen in different situations.
Discover more about the characteristics and construction process of sapphire windows by downloading our Buyers Guide to Sapphire Windows.
Defining Operating Conditions
Before selecting a sapphire window, it’s important to map out the environment it will operate in. That means understanding the pressures, temperatures, chemicals and mechanical loads the component will be exposed to over its lifetime, since these operating conditions shape almost every decision that follows.
Optical Performance Requirements
Optical performance needs defining just as carefully as the physical environment. Consider which wavelengths the system needs to transmit, how much imaging precision is required, and how sensitive the overall system is to variations in optical quality, as these factors determine what level of optical performance and surface quality specification the application calls for.
Thickness, Diameter and Geometry
The physical dimensions of the window matter just as much as the environment it sits in. Selecting an appropriate thickness and diameter is essential for achieving the mechanical strength and pressure resistance the application demands. While the geometry and edge treatment, including how the edges are chamfered, plays a role in how safely the window integrates into its housing and how resistant it is to fracture.
Mounting, Sealing and Mechanical Integration
How the window is held in place is another critical part of the design. Tolerances need to stack up correctly, and the mounting method, seal design and compression forces all need careful thought to make sure the window is properly supported. If the window is not properly supported, stress can concentrate in the wrong places, causing loads to distribute unevenly and increasing the risk of premature failure.
Surface Quality and Coatings
Surface quality can determine which sapphire window is most appropriate. If a scratch and dig standard applies, deciding what level of inspection will be used to verify it is important. Where the application calls for optical or environmental coatings, these should be checked against the thermal and chemical conditions the window will face in service.
Engineering Validation and Working with a Supplier
Before a specification is decided, it’s important to confirm that the load calculations, mounting design and material grade all stack up against what the system needs. This is where an experienced supplier can add real value, supporting the design process with thickness calculations, pressure modelling, geometry optimisation and coating advice from an early stage. Validating the design this way reduces risk and gives greater confidence that the finished window will perform as intended.
Getting Your Specification Right First Time
Choosing the right sapphire window comes down to evaluating environmental, optical and mechanical requirements against the practicalities of mounting, integration and manufacturability. Addressing these considerations early, and alongside an experienced supplier, gives the finished window the best chance of performing reliably throughout the life of the application.
